SIMWORX V3 Motion Racing Simulator | Quad Motion | 3x50" UHD | 2G Max
SIMWORX V3 Motion Racing Simulator | Quad Motion | 3x50" UHD | 2G Max
The SIMWORX V3 Motion Racing Simulator offers pro-grade precision and real-world race feedback.
Motion System
V3-Spec Quad Motion with traction loss, 150mm stroke actuators, 2G max acceleration, 250mm/s speed.
Chassis & Build
Predator Msport chassis, monocoque alloy frame, chrome-moly platform with digital motion feedback.
Display & Controls

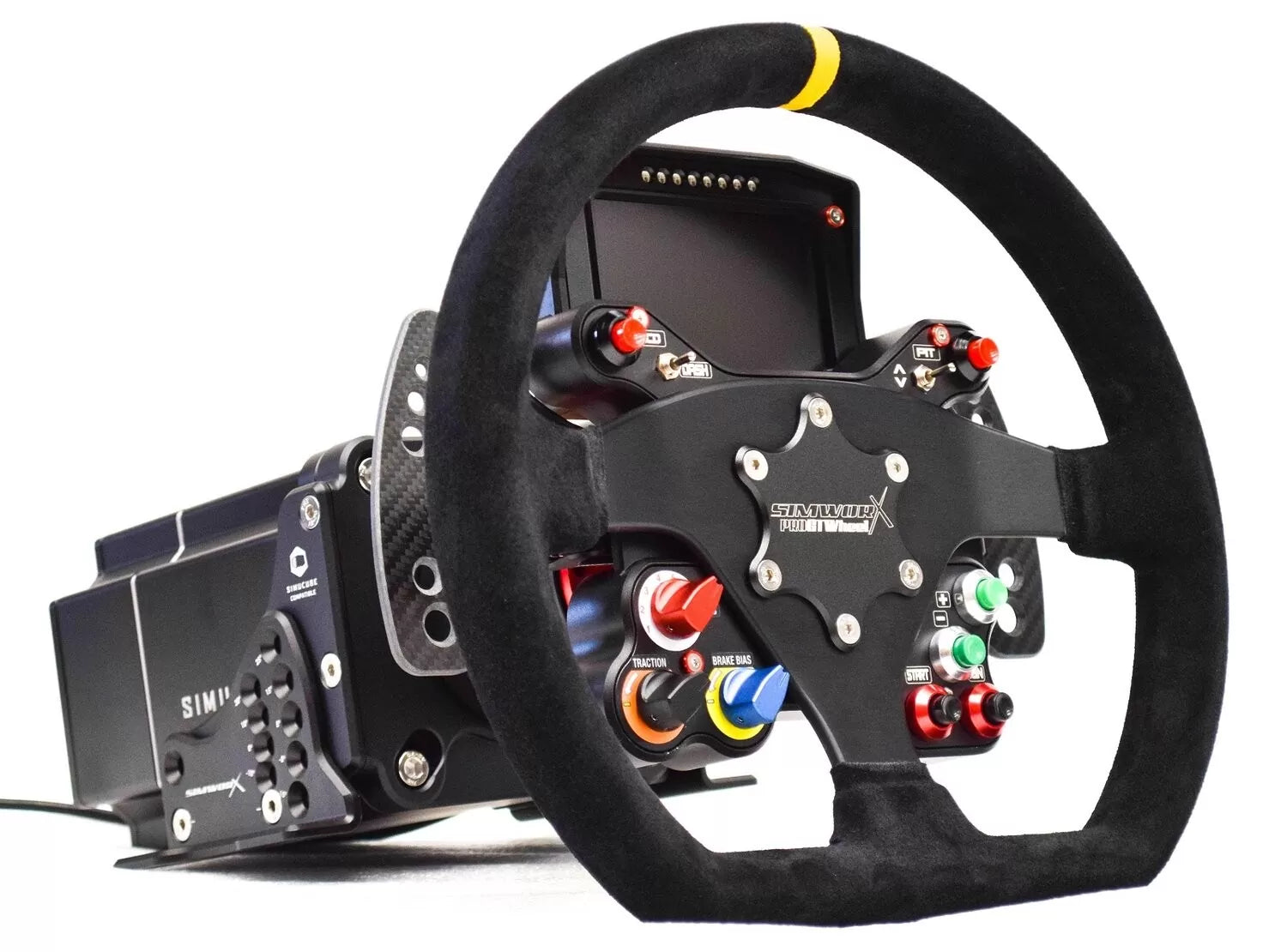

Triple 50" UHD screens, 43” telemetry display, Simucube 2 direct drive, OMP wheel, digital data dash.
Audio, PC & Extras
2.1 sound, bass shaker, PC with racing sims, telemetry, sequential shifter, G-force harness, turnkey ready. Contact us to build your SIMWORX V3 Motion Racing Simulator with custom pro-level configurations.
Couldn't load pickup availability
What is included with the V3 Motion Simulator
V3 Motion
To meet the demands of contemporary sim-racing software, you need effective, high resolution feedback. The response speed of your simulator is everything when it comes to competitive simulator based racing and testing. When you are racing at high speed around a circuit, you need a motion system that can replicate the changes in handling and track conditions accurately and in realtime. With a g-force rating up to 1.5G and a movement speed up to 250 mm/s, the Simworx V3 is fast! Our motion system has “intelligent” Servo Actuators that have a stroke of 150mm at speeds of up to 250mm/s on each corner. The Actuators have an internal ball screw design that is manufactured by NHK in Japan guaranteeing that the dynamic action is quiet, reliable and robust, ultimately it is designed to give you exquisite feedback and feel.
Simulator
Training with a realistic simulator off the track will help drivers to stay in the zone between meetings or assist in training your muscle memory for club track days and similar. Feeling your car’s limit and knowing when you can push harder, can be the difference between a good lap time and a great one. In the V3 simulator you can explore different lines braking points etc. without risking car and body. It is a safe and environmentally friendly way to cut laps without leaving your premises.

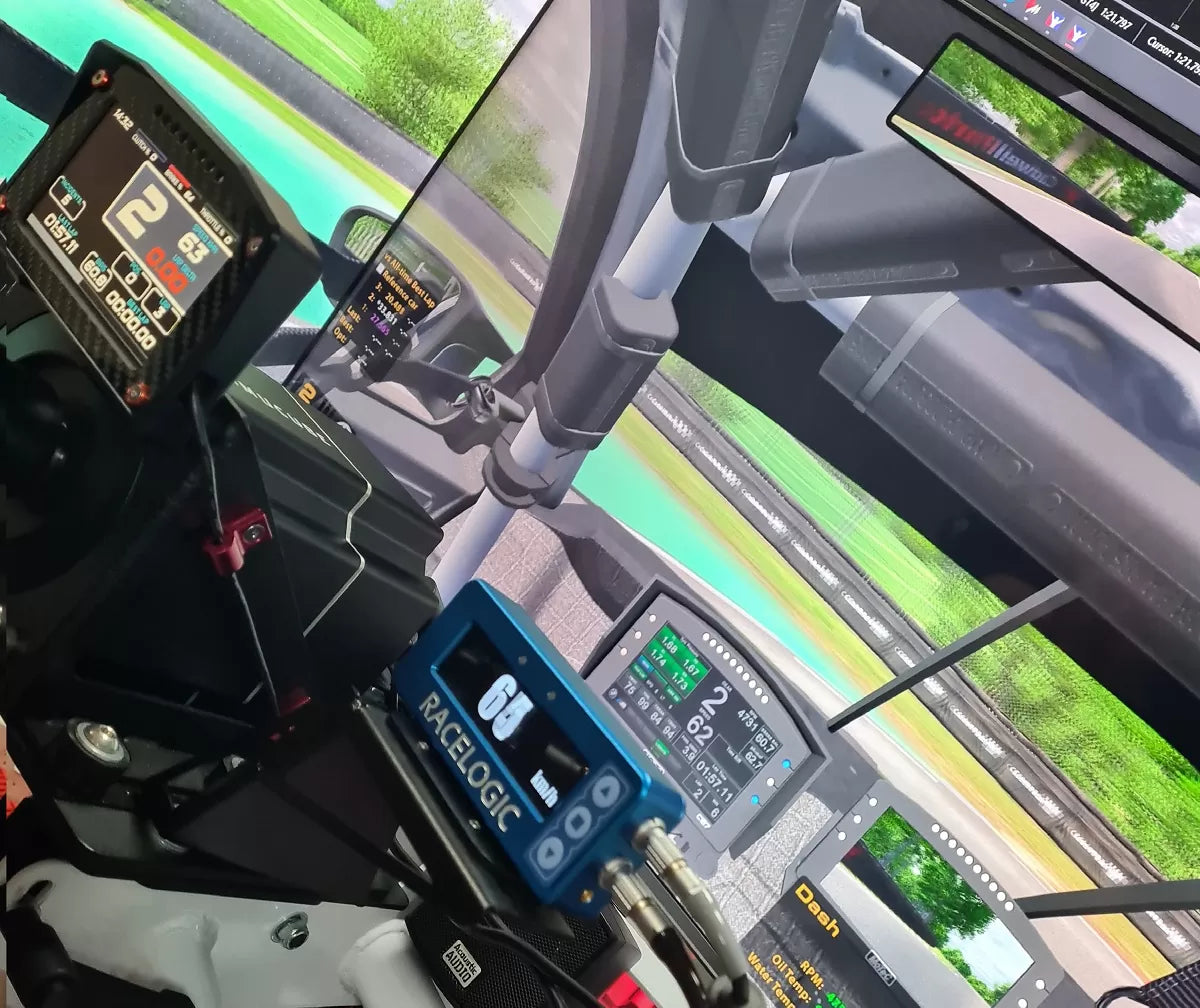

Additional Telemetry such as Racelogic VBox data acquisition software and hardware can be installed, to enable data overlays form the sim to your race car’s telemetry results.
MOTION
Simworx V3-Spec Quad Motion System with independent traction loss Digital connection between controller, PC & Actuators guarantees zero latency 150MM stroke Ball Screw HD Actuators with built in Encoders Maximum Velocity +- 500mm/sec up to 100Hz Frequency Maximum Acceleration + – 2G’s Maximum Thrust 350kgf Rated thrust 240kgf each actuator Traction Loss Actuator 150mm strok Primary Motion Platform – Chrome Moly Steel Tube and Plate Directions of movement: Heave – Pitch – Yaw – Roll
SX02Msport V3 Pro Spec
OVERALL
Length – 250cms
Width – 123cms
Height – 125cms
50″ Triple Screen Set
Length- 215cms
Width – 242 cms
Height – 162cms
Height with telemetry Screen fitted- 215cms
